| Brand Name : | SY |
| Model Number : | XPON 111 |
| Certification : | FCC/CE/ROSH |
| Price : | US$22-US$29/PC |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 3000 pieces per week |
| Delivery Time : | 5-8 working days |
Technical Parameter
| Module | Parameters |

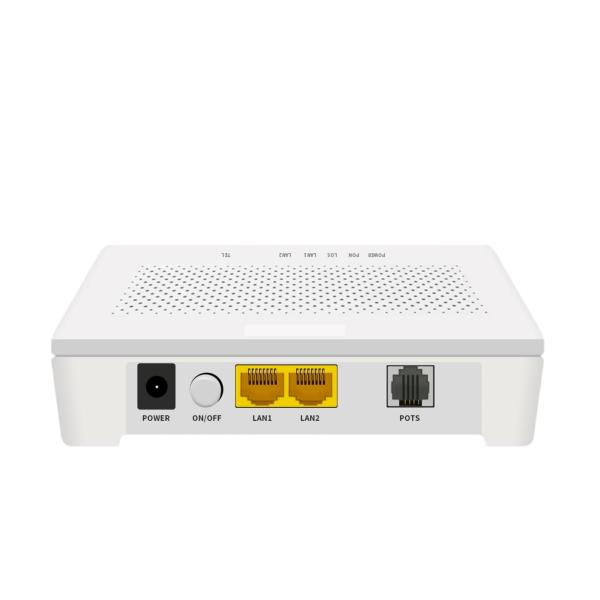

| User interface | 1*10/100/1000M RJ45 1*10/100M RJ45 1*POTS; |
| PON | EPON&GPON mode adaptive Interface Type:SC-UPC/SC-APC Transmission distance:20KM |
GPON: upstream 1.25Gbps/downstream 2.5Gbps Transmitting optical power: 0.5~5dBm Optical receive sensitivity:-7dBm~-28dBm | |
EPON:upstream 125Gbps/downstream 1.25Gbps Transmitting optical power: 0~4dBm Optical receiver sensitivity:>-7~-27dBm | |
| Ethernet | 1*10/100/1000M+1*10/100Mauto-negotiation Full/half duplex mode |
| POTS Port | 1*RJ11 connector Balanced Ring,55V RMS |
| Size | 140mm(L)X90mm(W)X30mm(H) |
| Environment | Operating temperature:0°C~60°C Operatinghumidity:10%~85%(non-condensing) Storage temperature:-40°C~80°C Storage humidity:5%~95%(non-condensing) |
| Power supply | 12V/1A DC |
| Power | <7W |
| Management | WEB/TELNET/TR069/OMCI/OAM |
Voice Service Functions
- With the heartbeat function, support the main producing soft exchange platform
- Support high / low speed mode transparent transmission, T38 two fax
- Support 1 POTS interface and the three party call, three party support local mixing
- Support POTS port GR909 line test functionSupport dynamic PPPOE,
DHCP and static IP
- 7* 24 hour call loss is less than or equal to 0.01%
- Support SIP (compatible with IMS), H.248, MGCP three VolP
protocol, and the soft switch platform the mainstream can be good
intercommunication
- Support ITU-T G.711, G.723.1, G.729 and other three kinds of
compressionalgorithm; echo cancellation conforming to ITU-T
G.168-2002, an echo cancellerfor the longest 128m
- Support high-speed Modem (56Kbps) dial access; support RFC2833
andredundant RFC2833, ringing, MD5 certification, call forwarding,
call waiting, thehotline, alarm clock, abbreviated dialing and
other value-added services
Ordering Information
| Product Model | Descriptions |
| XPON 111 | 1*10/100/1000M+1*10/100MEthernetinterface(RJ45) |
